OBDSTAR P001 Programmer RFID & Renew Key & EEPROM Functions 3 in 1
0 stars, based on 0reviews
Price:
HKOBDII
- OBDSTAR P001 Programmer RFID & Renew Key & EEPROM Functions 3 in 1
- P001 Programmer Support Vehicle List:
- IMMO for VW AUDI SKODA SEAT 4 & 5 GEN (Same function as the RFID Adapter)
- The 4th and 5th generation for the programming of VW/AUDI/SKODA/SEAT are added as follows:
- 1. CDC+24C32 Types
- 2. NEC+24C32 Types
- 3. 2013 Johnson Types;
- 4. Motorola 9S12XHZ512 Types;
- 5. NEC+24C64 Color Screen- Type 1
- 6. NEC+24C64 Color Screen- Type 2
- 7. NEC+24C64 White Screen Type
- 8. NEC+24C64(VDO -12)Type
- 9. NEC+95320 Type
- 10. NEC+35XX Type
- 11. Magotan/ CC Type
- 12. Q7/A6L(C6)9S12DT(G)128 Type
- 13. Q7/A6L(C6)9S12DT(G)256 Type
- 14. Lifan Marvell models are added, which includes Add/Clear Keys, Program/Delete ESCL functions.
- 15. Jiangling MU-X models are added as key programming and key clearing.
- Renew Used Key to be Blank One for Programming New Key. ( Same Function as the PCF79XX Renew Key adapter)
- Audi
- 5th generation immo
- Board 233.453.111-02
- 315MHZ 8T0959754A
- 315MHZ 8T0959754C
- 315MHZ 8T0959754J
- Board 233.453.111-05/06
- 315MHZ 4G0959754G
- 315MHZ 4G0959754J
- 315MHZ 4H0959754G
- 315MHZ 4H0959754J
- 315MHZ 8T0959754A
- 315MHZ 8T0959754C
- 315MHZ 8T0959754G
- 315MHZ 8T0959754J
- 433MHZ 8T0959754
- 868MHZ 4G0959754K
- 868MHZ 4H0959754K
- 868MHZ 8T0959754D
- Board 233.453.211-01/02
- 315MHZ 4G0959754J
- 315MHZ 8H0959754DB
- 315MHZ 8K0959754
- 315MHZ 8K0959754C
- 315MHZ 8K0959754G
- BMW
- E chassis
- ono-original key_OEM_KEY
- original key_315MHZ
- original key_868MHZ
- F chassis
- 315MHZ
- IN-Circuit-5WK49663
- IN-Circuit-HUF5662
- 434MHZ
- IN-Circuit-5WK49662
- IN-Circuit-HUF5663
- IN-Circuit-HUF5767
- 868MHZ
- IN-Circuit-5WK49661
- IN-Circuit-HUF5661
- Porshe
- 315MHZ
- 7PP959753BM
- 7PP959753BQ
- 433MHZ
- 7PP959753BN
- 7PP959753BS
- 7PP959753AJ
- Peugeot
- 21676652
- E25CI009
- E28CI01B
- E33CI002
- VW
- Touareg
- 433MHZ 7P6959754AO
- 868MHZ 7P6959754L
- 868MHZ 7P6959754AT
- Volvo
- smart card
- 900MHZ
- 5WK49266
- Chrysler
- 1YZ-C01C-ChipMarking
- 567_738_031
- Keylessgo 567_373_061
- IN-Circuit-0HT692427AA
- IN-Circuit-0HT692713AA
- IN-Circuit-K0B0T04A
- IN-Circuit-M3N5WY72XX
- IN-Circuit-M3N5WY783X
- Renault
- double button 433MHZ ChipMarking 2244706
- remote control 433MHZ ChipMarking F7945MC2200
- smart card 433MHZ ChipMarking F7953MC2200
- smart card 433MHZ ChipMarking 049621C03
- Landrover
- 315MHZ YWX000061
- 315MHZ YWX000071
- smart key 434MHZ 5E0U40247
- Opel
- double button 433MHZ 13500235
- triple button 433MHZ 13500234
- Corsa double button 433MHZ 13188281
- Corsa triple button 433MHZ 13188284
- Astra/Zafira double button 433MHZ 13149645
- Astra/Zafira double button 433MHZ 13149658
- Kia
- Keylessgo_ChipMarking 049620C03
- 7952CMFCH02
- CMFEU03
- HMFEU04
- HMFKR04
- HMFNA04
- Mitsubishi
- 434MHZ G8D_644M_KEY_434MHZ_F7952A
- GM
- Buick smart key 315MHZ
- Keylessgo_13500224_13584825_5keys
- Keylessgo_13500225_13584825_4keys
- Cadillac smart key 315MHZ
- Keylessgo_NBG009768T
- GM samrt key
- 433MHZ Keylessgo_3keys
- 433MHZ Keylessgo_4keys
- 433MHZ Keylessgo_5keys
- Chevrolet
- double button 433MHZ 13500218
- four button 315MHZ 13500222
- five button 315MHZ 13500221
- smart card 315MHZ
- Keylessgo_13500318_13584828_4keys
- Keylessgo_13500319_13584829_5keys
- Hyundai
- Keylessgo_ChipMarking 049620C03
- 7952CMFCH02
- CMFEU03
- HMFEU04
- HMFKR04
- HMFNA04
- Citroen
- 21676652
- E25CI009
- E28CI01B
- E33CI002
- EEPROM Function Supported Models List (Same as the EEPROM Adapter)
- Add 24C01/02/04/08/16/32 chip read/write/save/recovery data function;
- Add 93C46/56/66/76/86 chip read/write/save/recovery data function;
- Add 25010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
- Add 95010/020/040/080/040/080/040/080/256 chip read/write/save/recovery data function;
- Add Audi security code read function;
- Add Baic E150, E130 security code read function;
- Add Buick security code read function;
- Add Cadillac SLS, SRX security code read function;
- Add Changan CM8, Yue xiang, Zhi xiang,benben security code read function;
- Add Changhe security code read function;
- Add Chery STEC immobiliser and DIAS immobiliser security code read function;
- Add Chevrolet Cruze, Trax security code read function;
- Add Chrysler security code read function;
- Add Citroen Elysee security code read function;
- Add Dflz and security code read function;
- Add Dfpv S3 security password read function;
- Add Geely Emgrand security code read function;
- Add Great Wall security code read function;
- Add Hafei security code read function;
- Add Hnmazda security code read function;
- Add Hawtai security code read function;
- Add Huapu security code read function;
- Add MG3 security code read function;
- Add Jiangling security code read function;
- Add Liebao security code read function;
- Add Skoda security code read function;
- Add VW security code read function;
- Add Zznissan security code read function;
- Add Zotye to security code read function;
- Note: Need to remove the EEPROM chip read password
- P001 Programmer uses dual coils with stronger signal, supporting a wider range of RFID. It is also required in recent model upgrades, as follow:
- Ferrari 458/F12/F149;
- Maserati mechanical key;
- Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
- Iveco;
- Alfa Romeo;
- Volkswagen MQB;
- Toyota simulated cards;
- BMW;
- Porsche
- P001 Programmer:
- P001 Programmer Unit + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable;
- P001 Programmer Accessories:

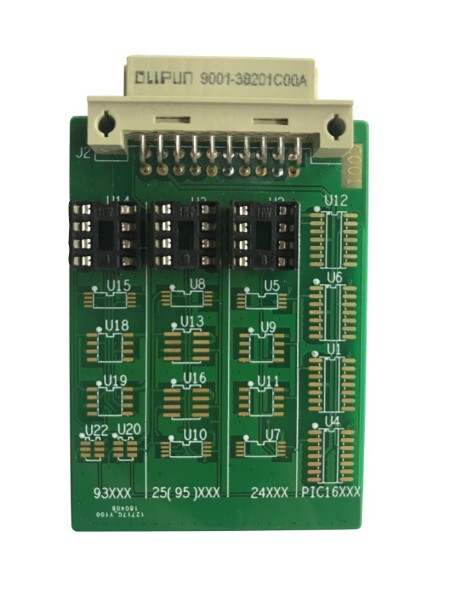

- Accessory 1: C001 circuit board
- C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI immobilizer coil initialization and other functions.

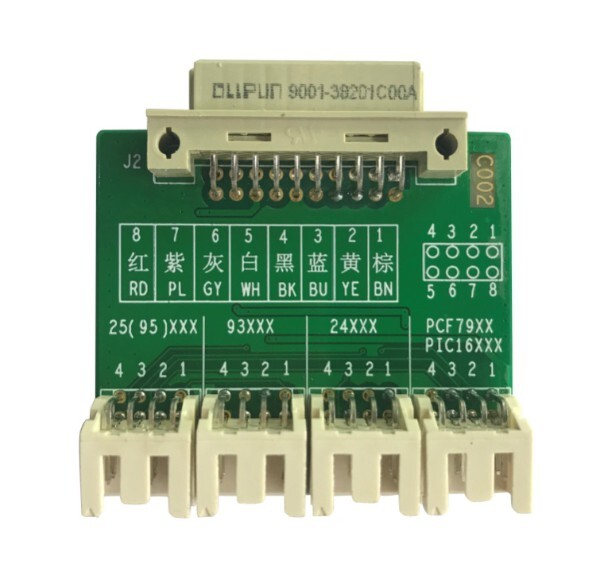

- Accessory 2: C002 circuit board
- The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.

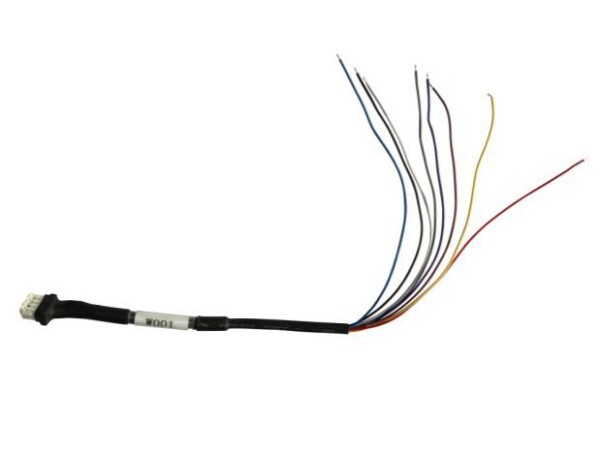

- Accessory 3: W001 data cable
- W001 data cable can read or write data by linking the chip with a bonding wire

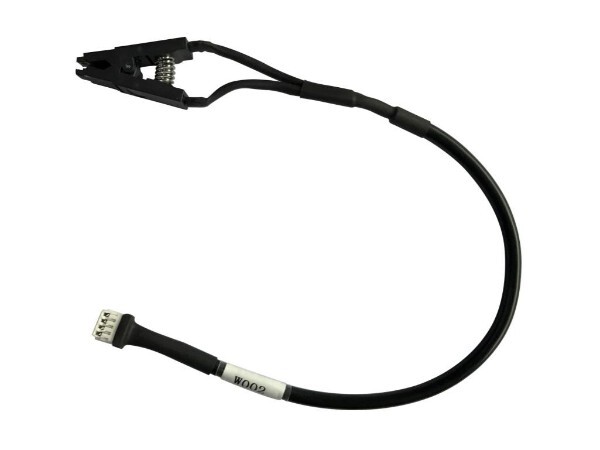

- Accessory 4: W002 data cable
- W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.
- Accessory 5: W003 data cable
- W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the data interface with yellow and blue probes.
- Wiring Instruction:
- To better understand the connection among P001 programmer and its accessories, examples for W001 and W003 wiring instructions are as below. (During the actual operation process, there is a diagram of wiring inside tablet)

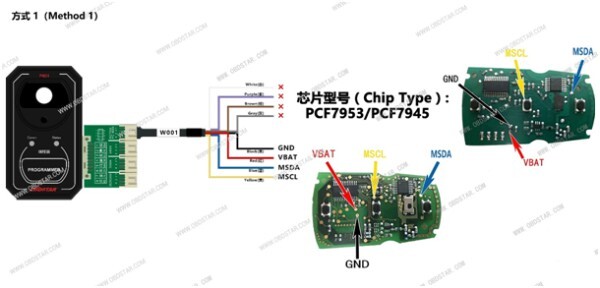

- Way 1. W001 Connecting

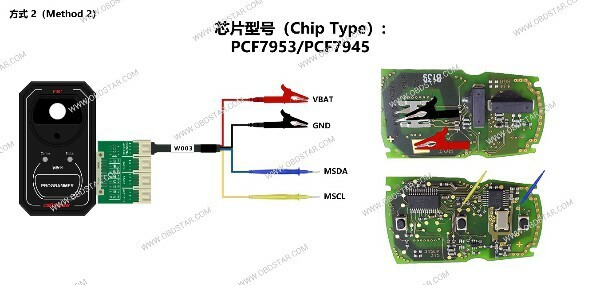

- Way 2. W003 Connecting
