2026 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski Get Free Key Sim and Motor Adapters

OBDSTAR X300 Classic G3 Key Programmer for Car/ HD/ E-Car/ Motorcycles/ Jet Ski with 2 Years Free Update

X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.

Highlights:

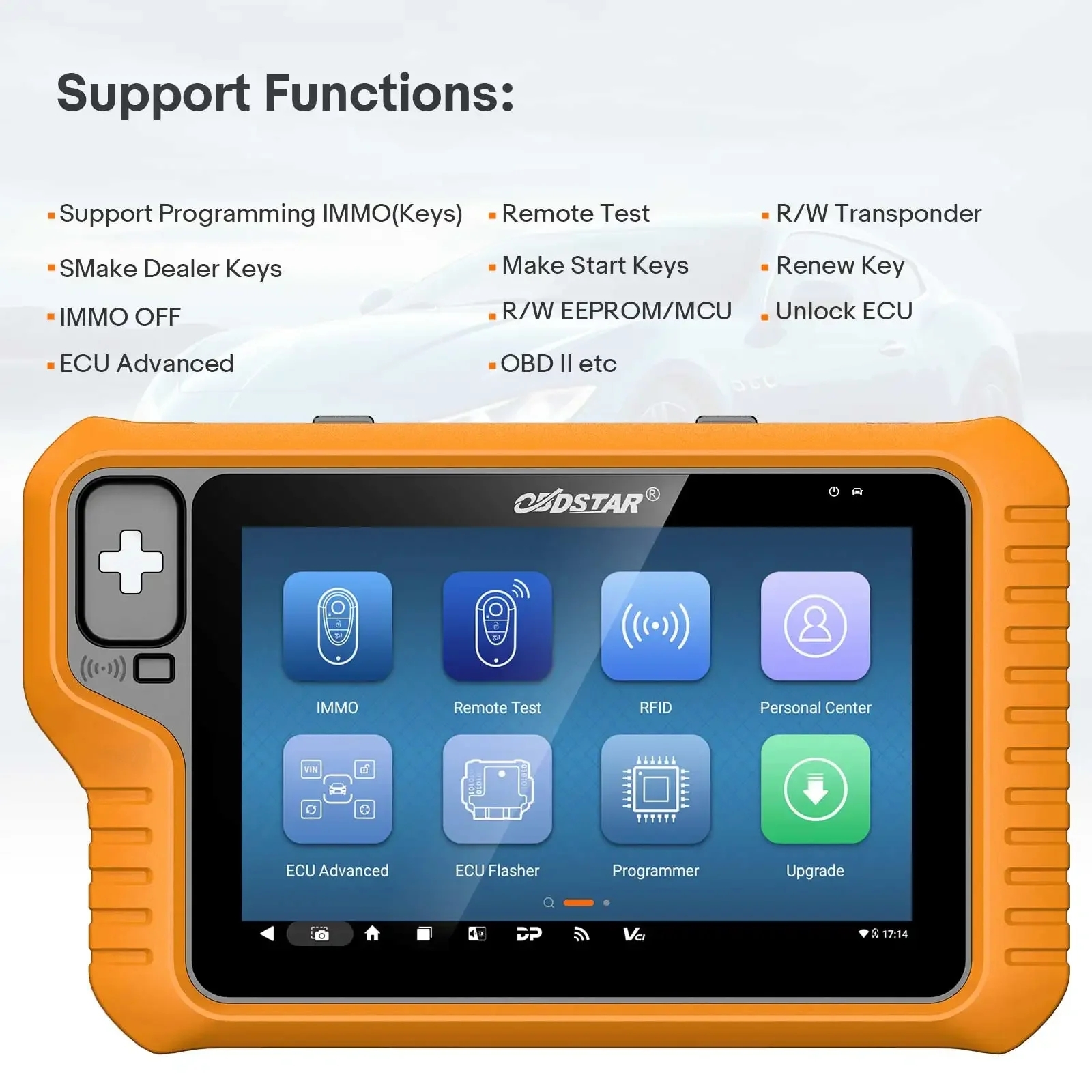

1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski.
3. 2 Years Free Update Online

4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package

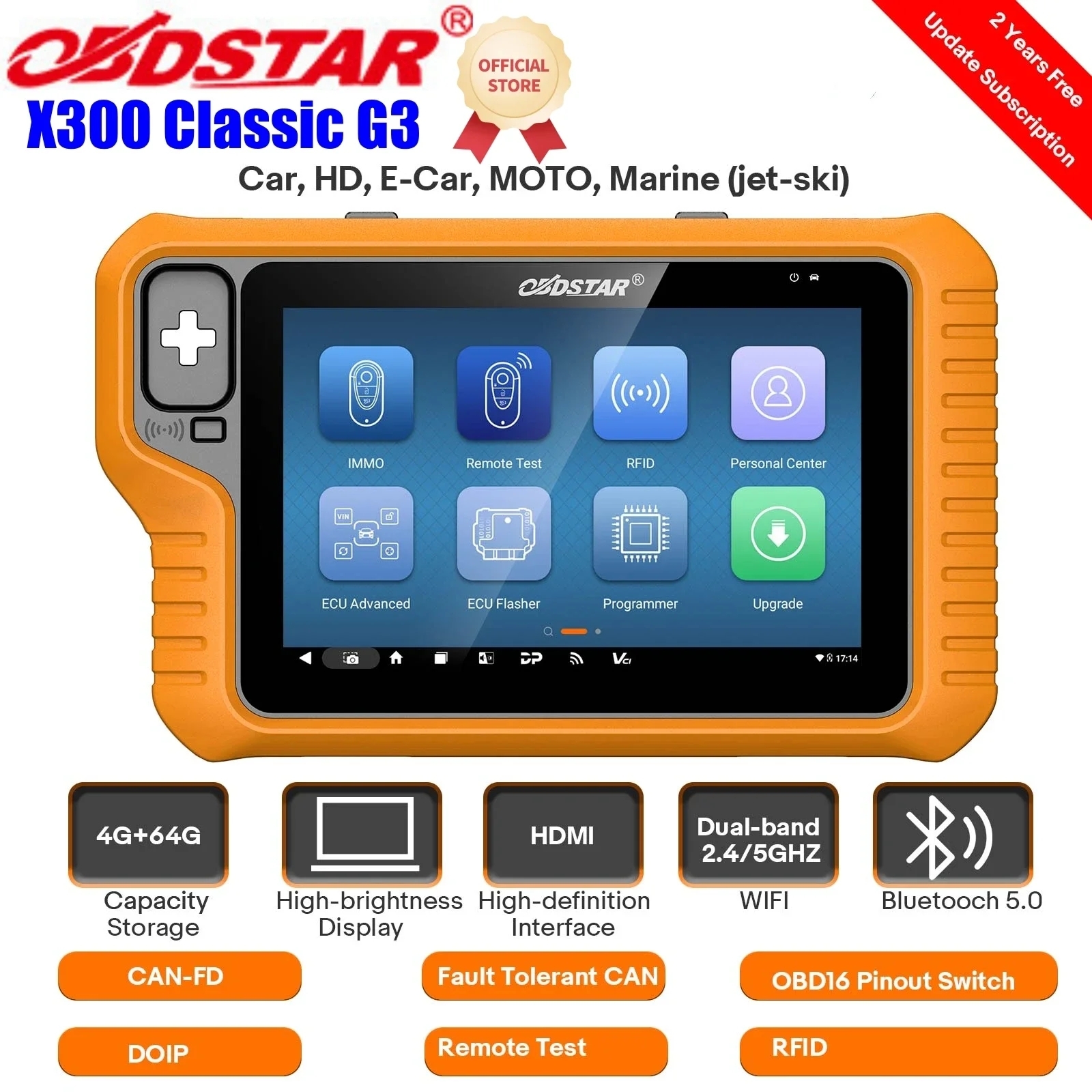

6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.

7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform (Bundle Price) and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706

8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.

Notice: Language: English Only

Other Optional Accessories You May Need:

OBDSTAR Ford All Key Lost Cable work together with OBDSTAR P002 Adapter for FORD /LINCOLN / MUSTANG etc
OBDSTAR Toyota-30 Cable Proximity Key Programming / All Key Lost Support 4A and 8A-BA types No Need to Pierce the Harness
BENZ FBS3 KIT is used for Read PinCode, ECU Reset Virgin/Program and Program Keys. Support FBS3 Add Keys, AKL, ECM/TCM/ISM/EIS/ELV Reset Virgin and set personalization.
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
OBDSTAR VW4-AKL Cable For VW IMMO IV NEC24C64 and NEC24C32 All Keys Lost
OBDSTAR RH850/V850 Adapter Full Kit for MQB All Keys Lost. Supports VAG MQB48 5A key programming and AKL sync code calculation
OBDSTAR P005 Adapter Kit Used for BMW BDC02 IMMO Function

Advanced Functions

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.

OBDSTAR X300 Classic G3 Vs. X300 DP Plus:



OBDSTAR X300 Classic G3 Lastest Update:
Locked MG1/MD1 ECU Read/Write & Unlock

Bosch MD1CP032(BMW B57)TC299
Bosch MG1CS024(BMW B48/B58)TC298
Bosch MG1CS201(BMW B48/B58)TC298
Bosch MD1CS069(FCA) TC299
Bosch MD1CP006(Ford)TC298
Bosch MD1CS089(ISUZU etc.)TC299 (Only for ECU MASTER C)
More Models Coming Soon.
NOTE: Requires RH850/V850 adapter kit(C4-06 adapter)

Q: Can the KEY MASTER G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A: Yes, please contact us or our our dealers for details.

Q: I would like to have the list of supported models & features of this tool, where can I get it?
A: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.

Q: Is KEY MASTER G3 compatible with all the functions of KEY MASTER DP PLUS?
A: No, KEY MASTER G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q: Can I use the accessories of an old product I have previously purchased?
A: Yes, in order to save locksmith costs, KEY MASTER G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
4. FCA 12+8 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.

Q: What is ECU Unlock function of KEY MASTER G3?
A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

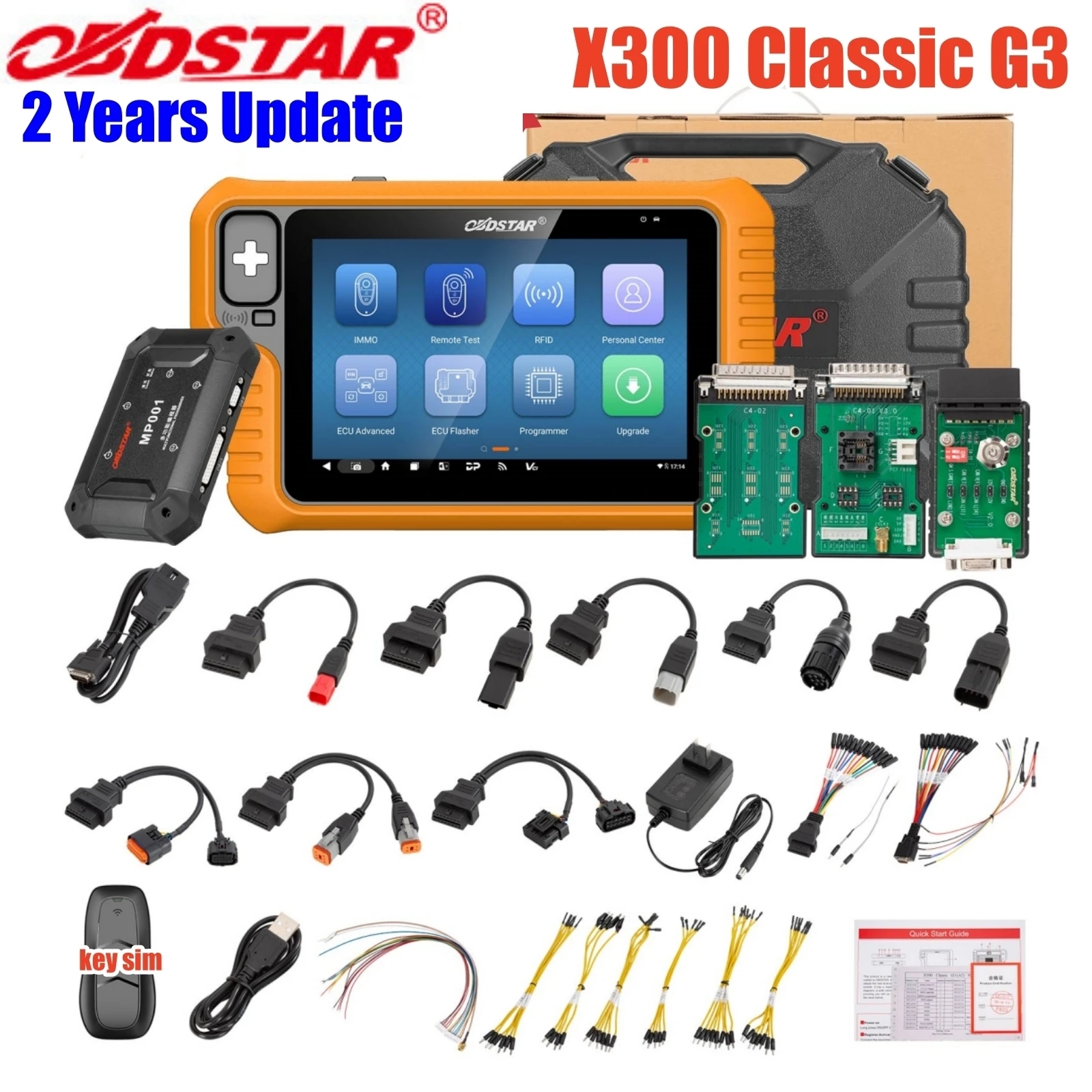

Package Includes:

1pc x OBDSTAR G3 Multiplexer
1pc x M001 Main Cable
1pc x Charger
1pc x MP001 All-in-One Programmer
1pc x W004 Read/Write Soldering Wire
1pc x W005 Read/Write Soldering Wire
1pc x W006 Clock Frequency Wire
1pc x C4-01 Multi-function Data Read/Write Board
1pc x C4-02 Eight-pin Chip(IC) Soldering Board
1pc x BENCH-A V3 for ECM and TCM Cloning Functions
1pc x P004 Adapter
1pc x BENCH-B V2 ECU Cloning BENCH Harness

Free Gift Kits
A1:
1pc x Key Sim + USB to Type-C Cable

A2:
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA

For more information, please contact us.
