Original MaxiIM Autel KM100 Portuguese with GM(BR) Fiat(BR) Generator Immobilizer IMMO Learning Tool Lifetime Free Update Online with Portuguese language
Product Tag:
KM100
KM100 Package List:
1 x KM100 Main Unit
1 x Bluetooth Wireless VCI Adapter

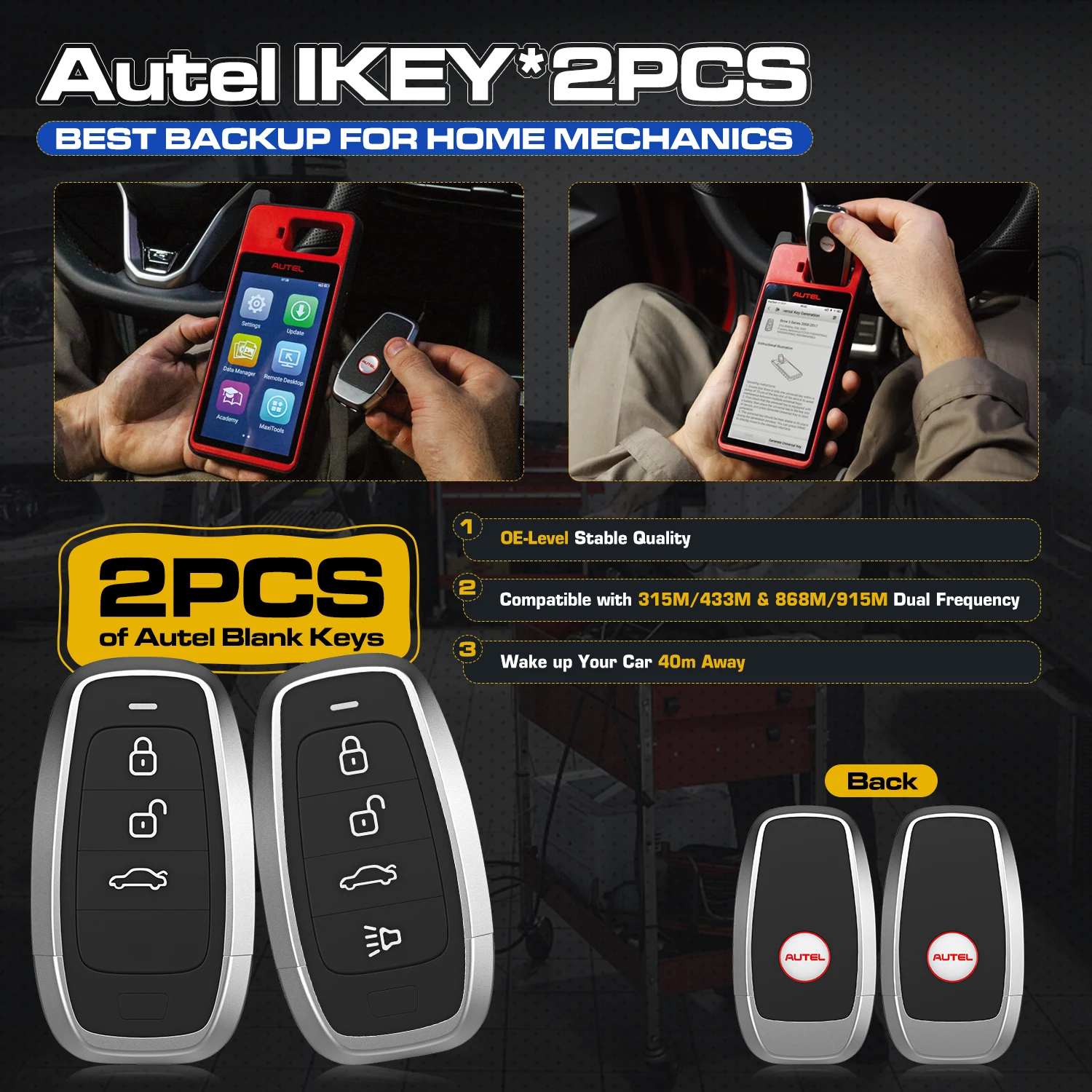

2 x Ikey (Randomly)
1 x Charger
1 x Renew Cable
1 x VCI Cable
1 x Charging Cable
1 x Manual
Specifications:
Operating System: Android™ 9.0
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Memory: 2GB RAM/64GB on-board memory
Screen: 5.5-inch screen with 1280 x 720 resolution
Camera: 8 megapixels
Connection: Wi-Fi; Bluetooth 5.0; USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output: MIC: supported; Speaker: supported
Dimensions (WxHxD): 200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”)
Weight: 352.7g (0.8 lb)
Operating Temp: 10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

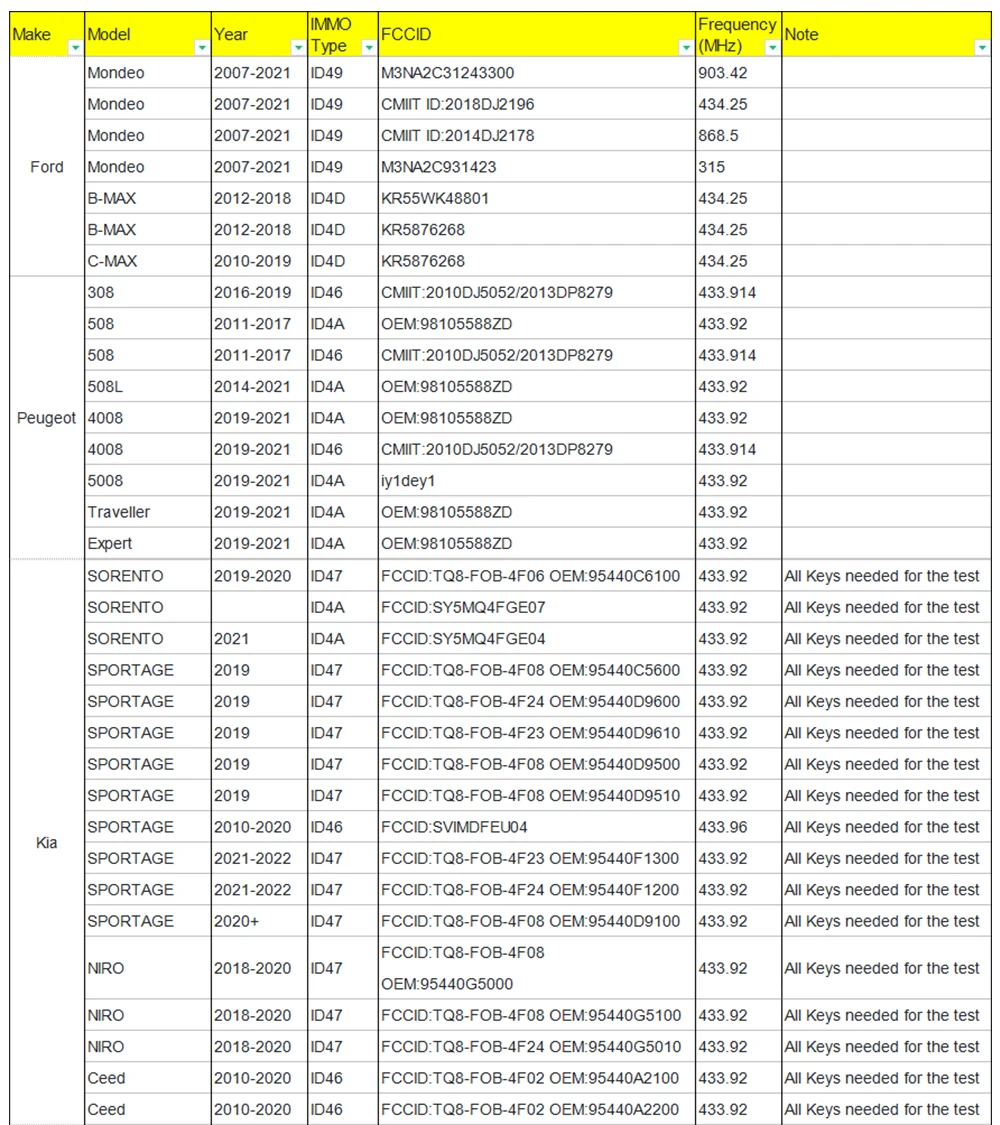

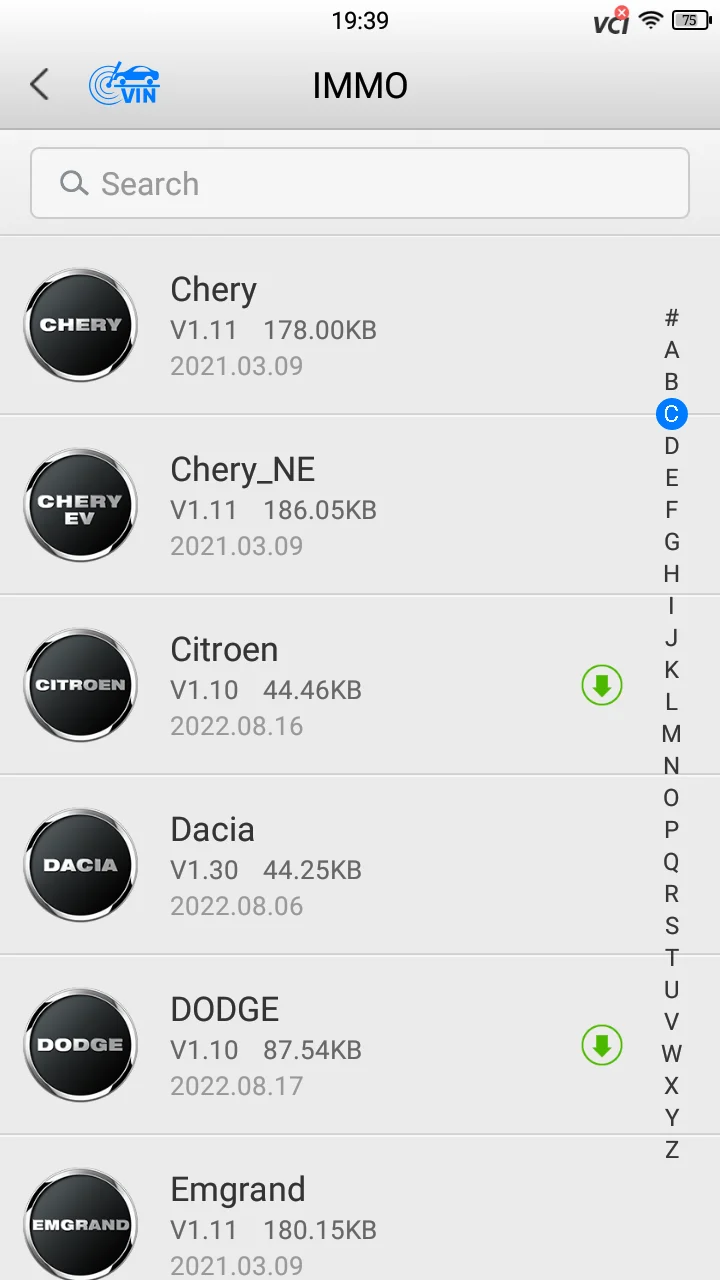

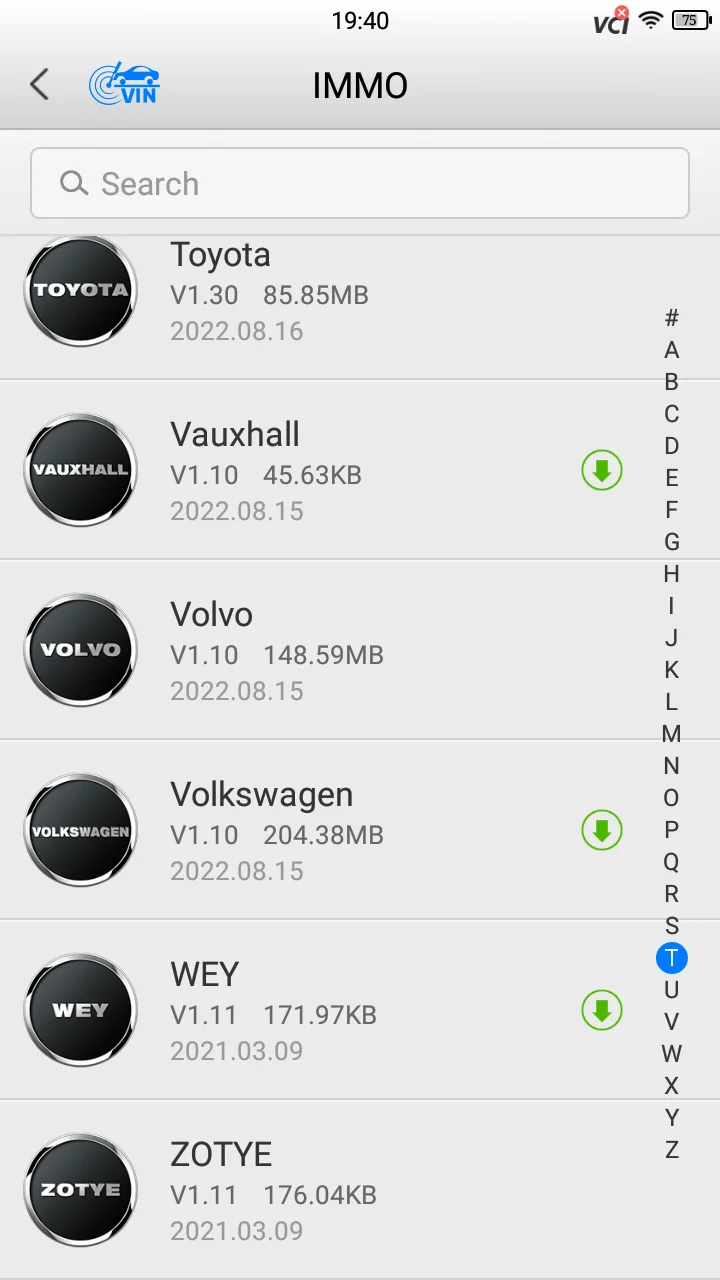

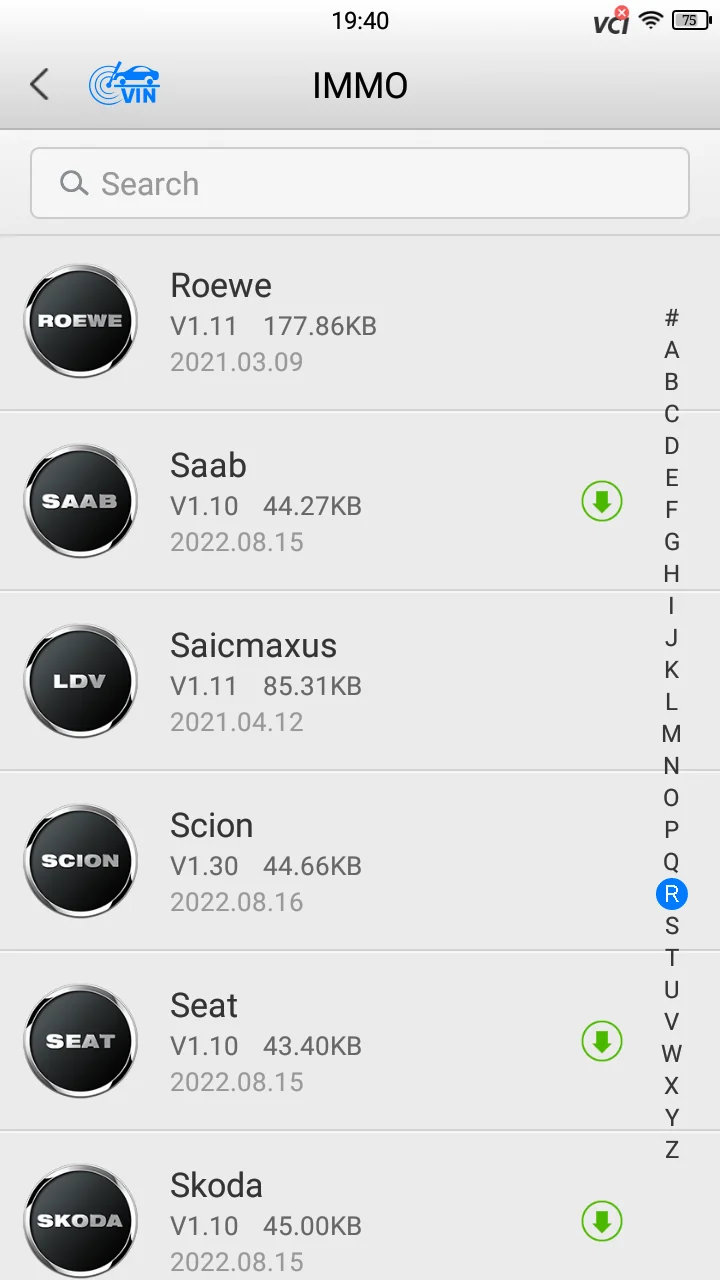

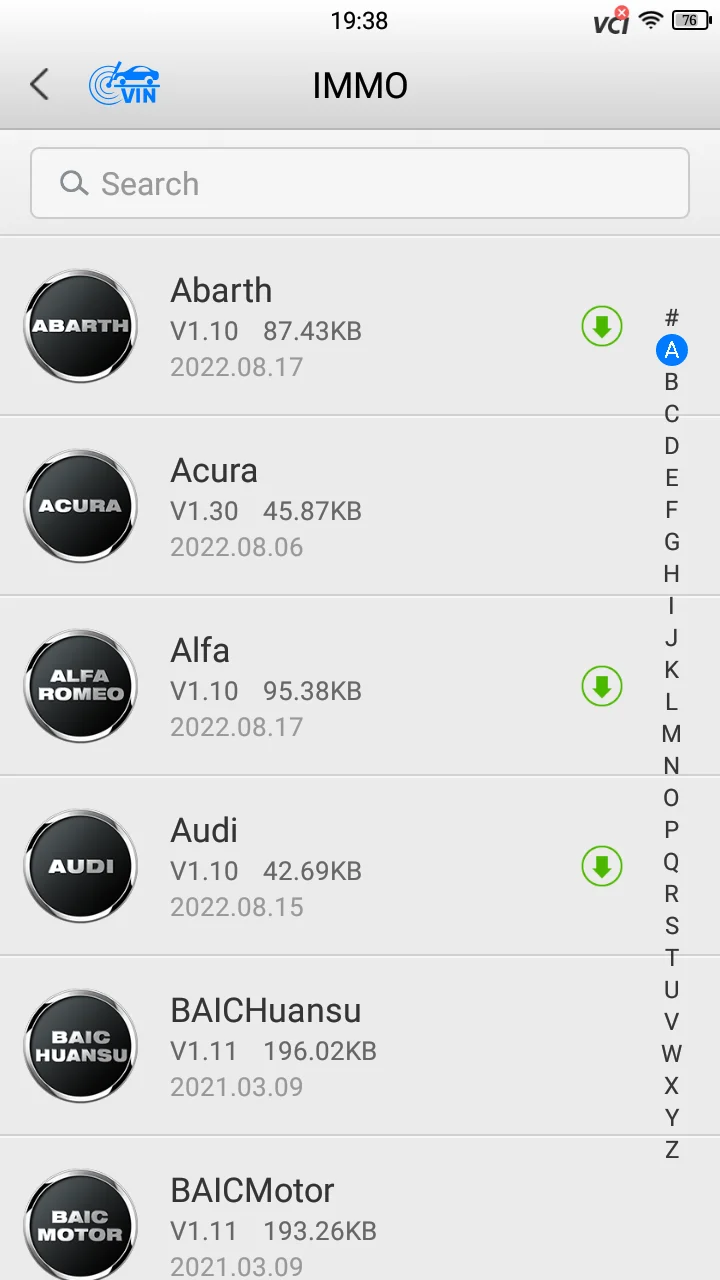

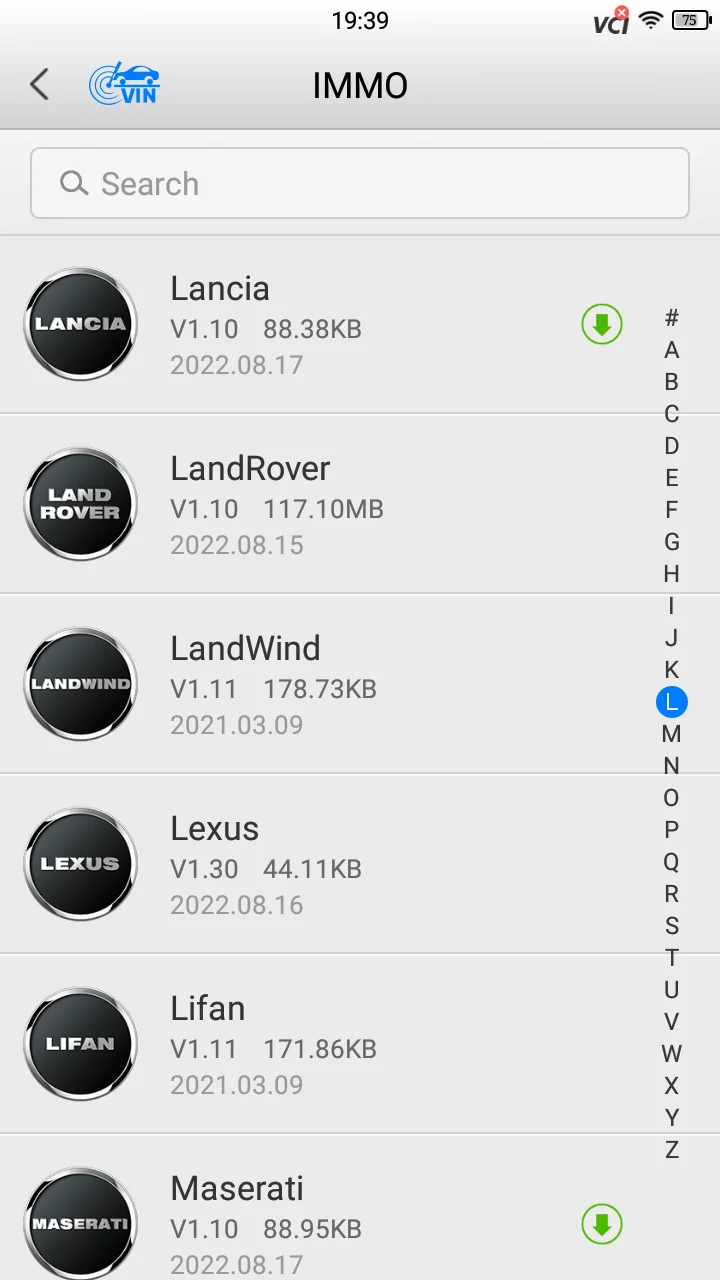

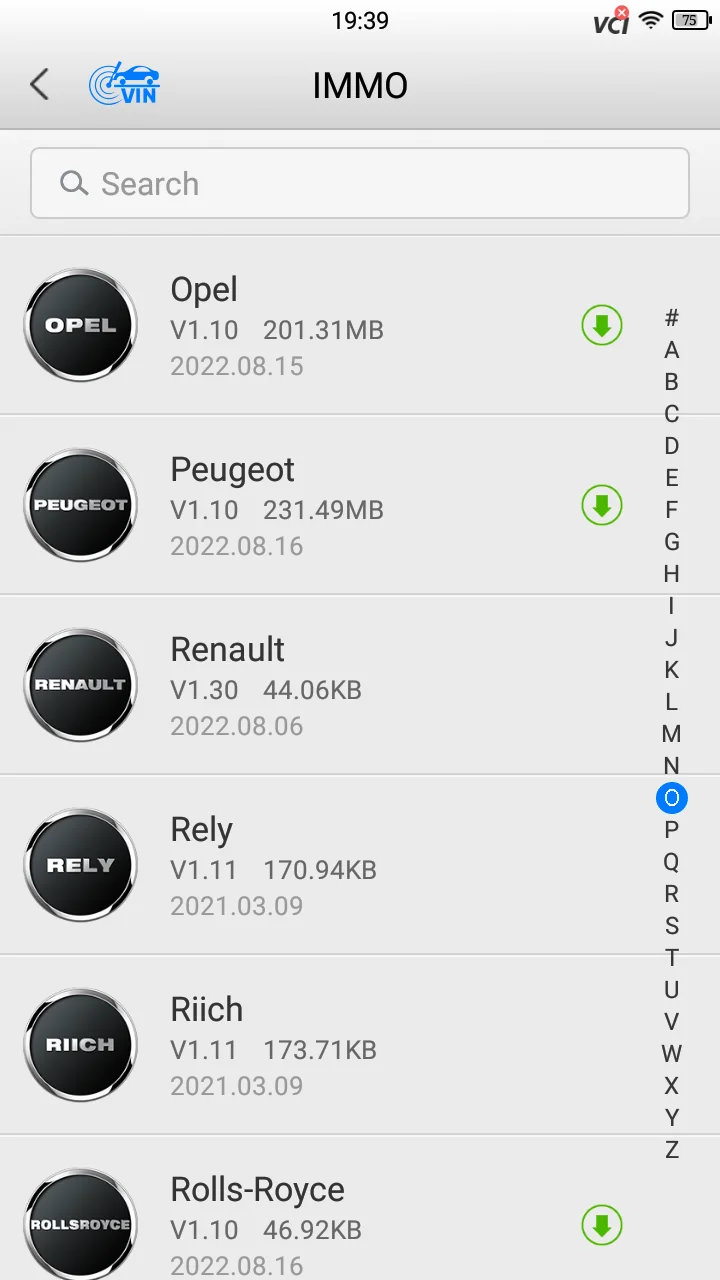

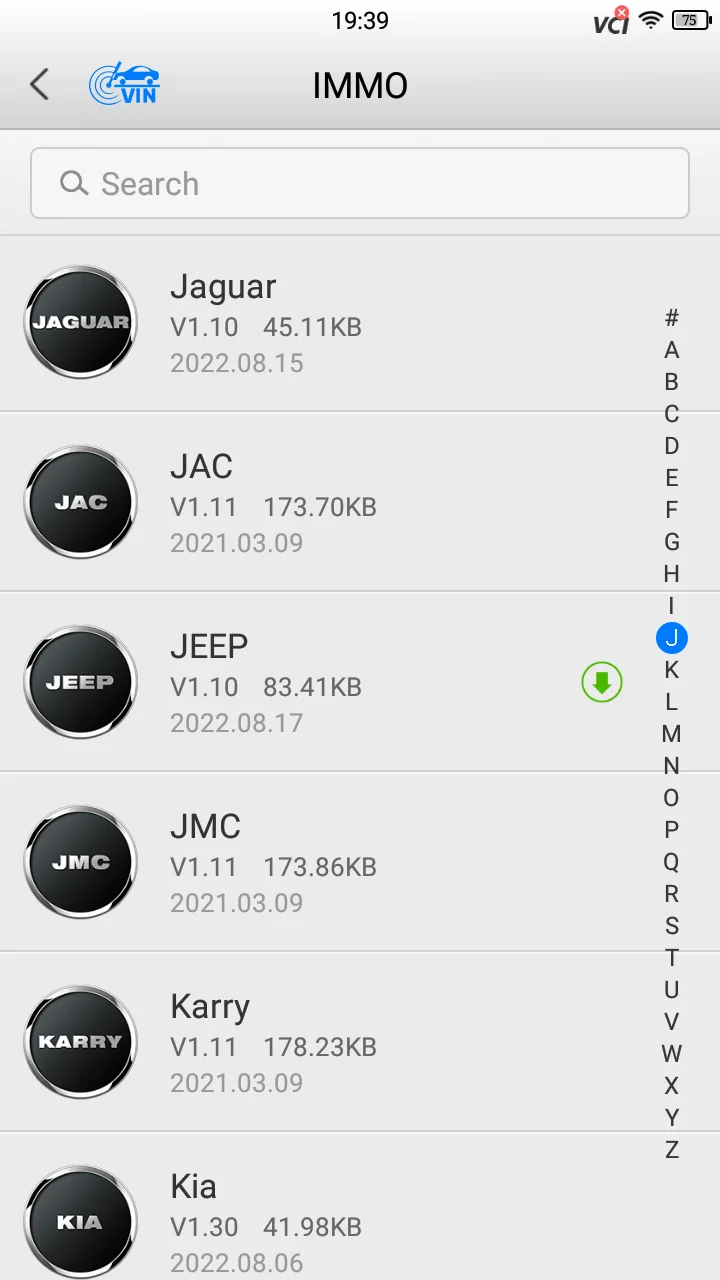

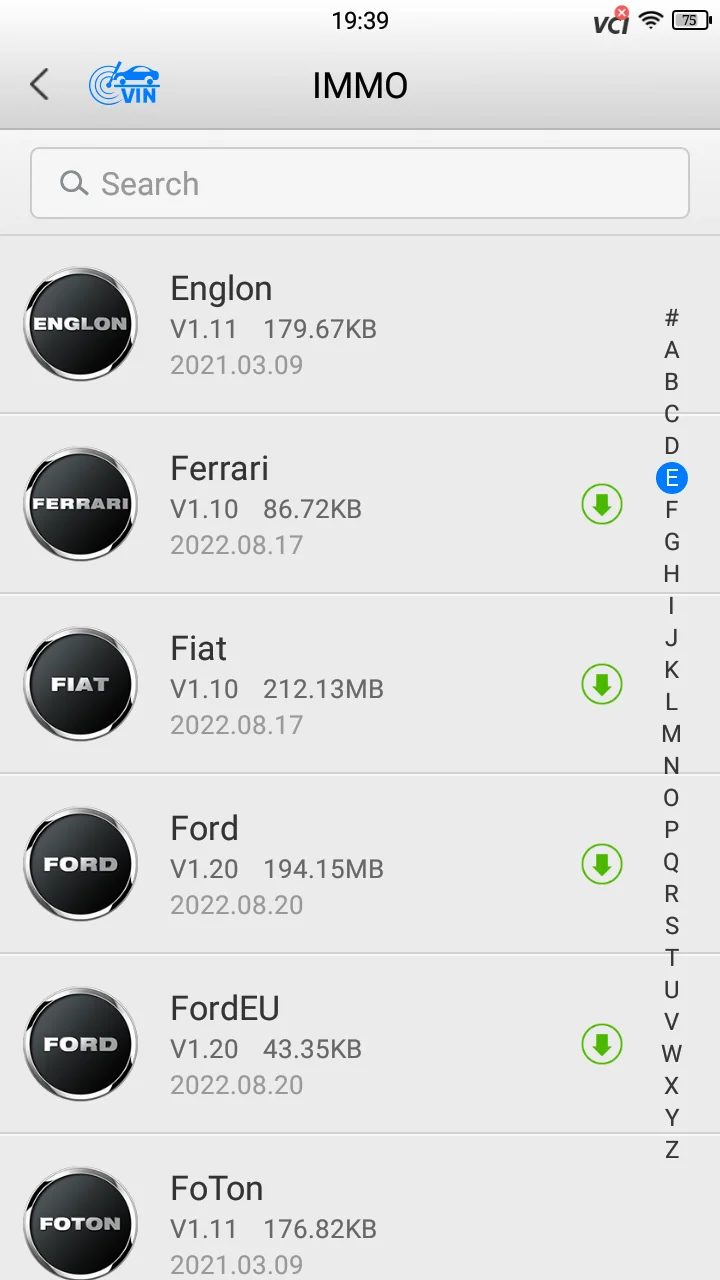

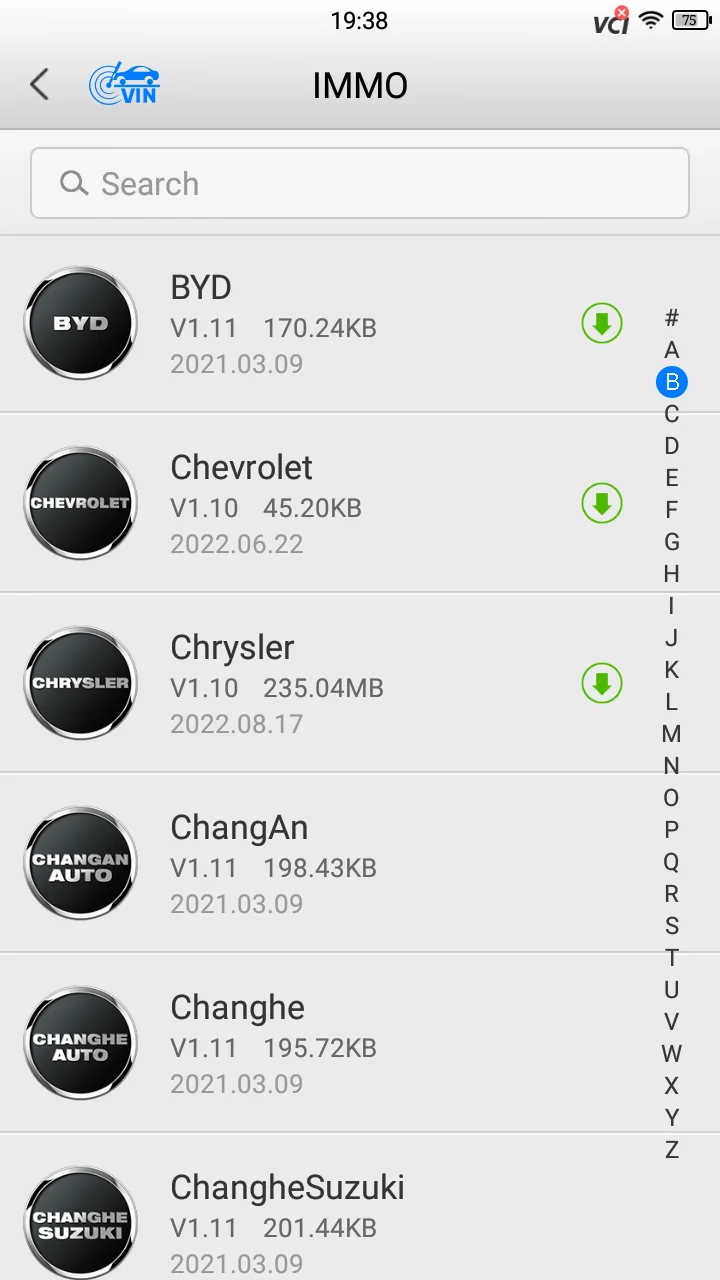

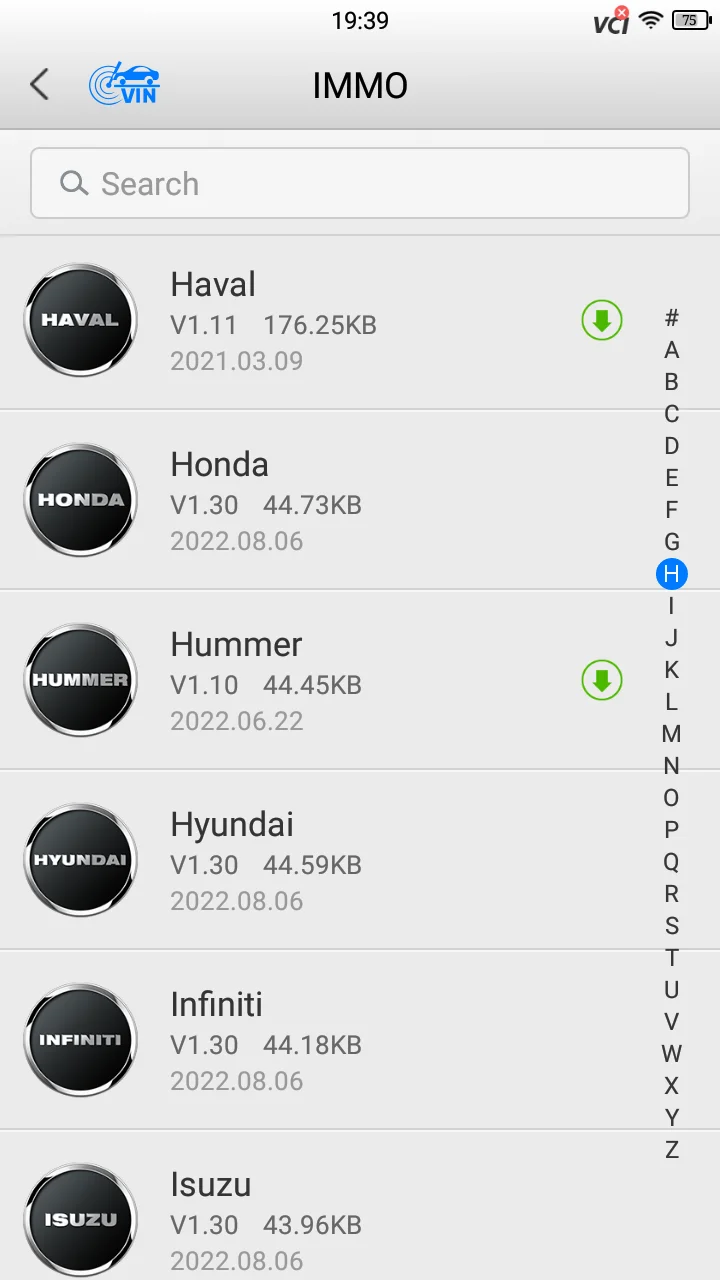

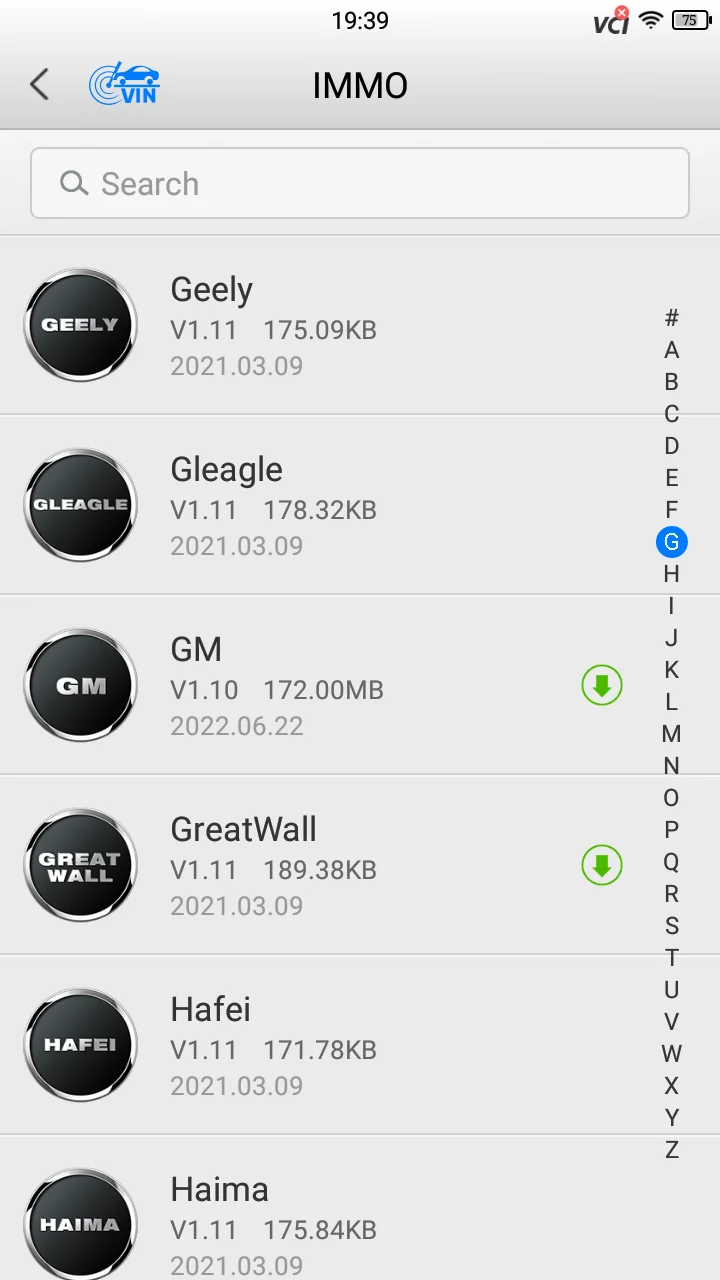

Autel MaxiIM KM100 Supported List:
Such As：Acura, Alfa, Audi, BAICHuansu, BAICMotor, BaicNe, BaicSenov, BAICWeiw, Baojun, Bmw, Borgward, BYD, CfMotor, ChangAn, ChanganSuzuki, Changhe, Chery, Chrysler, Citroen, Dacia, DFVenucia, Dodge, DS, Emgrand, EXEED, Fawcar, Fiat, FiatBrazil, Ford, FordAU, FordChina, FordEU, GACMotor, GM, GreatWall, Haval, Holden, Hyundai, Infiniti, JAC, JAC, Jaguar, JEEP, JETOUR, JMC, Karry, Kia, LandRover, LandRover, Maserati, Mazda, Mitsubishi, Nissan, Opel, Ora, Perodua, Peugeot, Porsche, Renault, Roewe, SaDatong, Seat, Skoda, Suzuki, Toyota, Traum, Volkswage, WEY, ZOTYE.
For more, please contact to the seller!

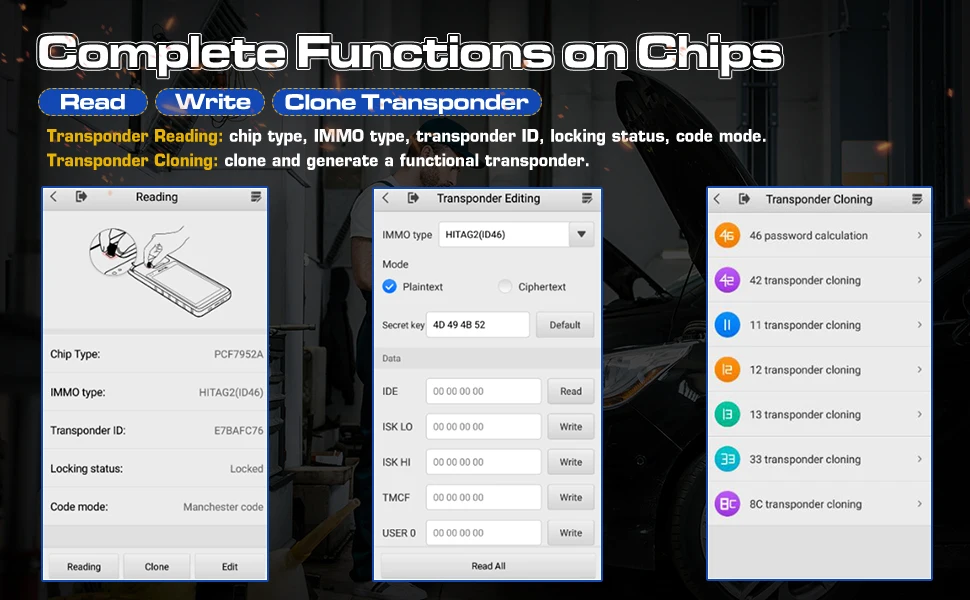

Transponder Reading/Writing/Cloning:
✔️Transponder Reading:
Transponder reading gives you the access to some basic information of the key, including chip type, IMMO type, transponder ID, locking status, and code mode. To read the transponder information, place the transponder into the transponder slot or put the key into the key slot and tap the Read button. The Transponder Information screen will appear.
✔️Transponder Cloning:
You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
The KM100 supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID).
• 46 password calculation
• 42 transponder cloning
• 11 transponder cloning
• 12 transponder cloning
• 13 transponder cloning
• 33 transponder cloning
• 8C transponder cloning
✔️Transponder Editing:
This function helps you read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs. When a writing operation is successfully done, a “writing succeeded” message will appear, and you may move to another operation.
✔️8 Serices IMMO Types: ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB. (ID4D: ID4D only has remote control. If the key is out of power and the vehicle cannot be started in an emergency, an additional 4D transponder need be installed)
Vehicle Compatibility:
• Support AutoVIN
• Simple Operation, Guided User Instructions, Easy To Use
• Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
• Supporting 8 Key Series And 37 Models
• Covering The Top 100 Selling Models In North America For The Last 10 Years

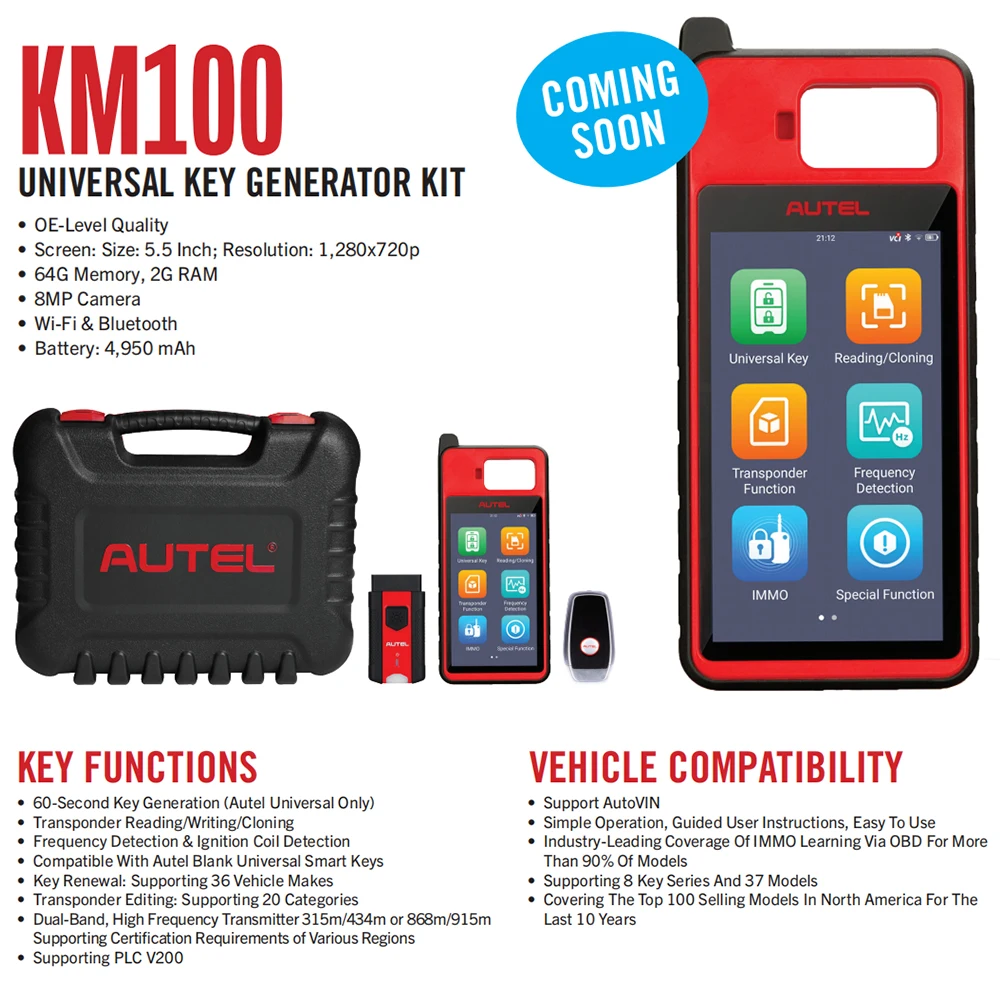

Key Functions:
• 60-Second Key Generation (Autel Universal Only)
• Transponder Reading/Writing/Cloning
• Frequency Detection & Ignition Coil Detection
• Compatible With Autel Blank Universal Smart Keys
• Key Renewal: Supporting 36 Vehicle Makes
• Transponder Editing: Supporting 20 Categories
• Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m
• Supporting Certification Requirements of Various Regions
• Supporting PLC V200
Autel MaxiIM KM100:

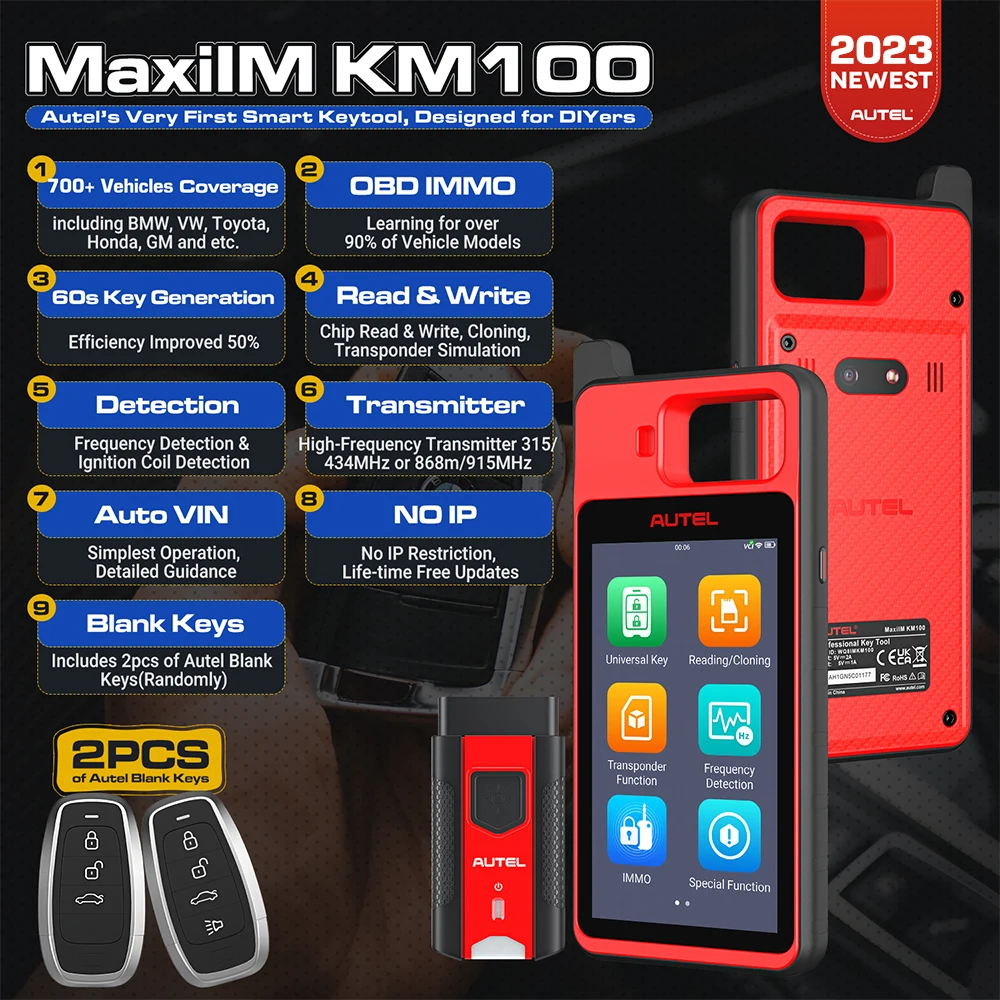

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.
Locksmith Essential
